DIY CO2 Guide with Pictures

DIY CO2 is a matter of taking Yeast and Sugar, and mixing with water to create a reaction byproduct of CO2. This works extremely well for 1-30 gallon tanks. For tanks larger you must create more bottles, to increase CO2 output, but it can be done. It just requires more effort, and most tend to go over to pressurized because the time and effort, and added cost over time required. But it can be done.

Equipment:
Gatorade, Apple Juice, or Oceanspray Bottle
2 Cups of Sugar
1/4-1 teaspoon of yeast
1/4 teaspoon of baking soda (optional)
Diffusor: Hagen Ladder, sweetwater AS10, or through filter intake

Recipe:
2 Cups of Sugar
1/4-1 teaspoon of yeast (the more yeast the faster the reaction, more CO2 for shorter period of time (2+ weeks)).
1/4 teaspoon of baking soda (optional)
Click the image to open in full size.

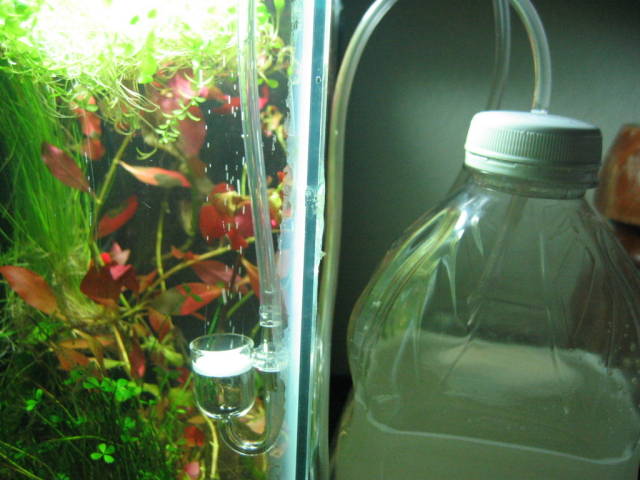

Making the Canister (Reaction Bottle):
Take drill bit or hammer with a small nail (smaller than the diameter of tubing).
Unscrew your cap, hammer the nail in the cap to make a small hole
Get some Airline tubing and pull it through the small hole with pliers. The small hole will create a seal around the tubing so no need for glue. That’s why you want the hole to be small.

Add the Recipe:
Add 2 cups Sugar
Fill the container with water up to 3/4 way.
Add 1/4-1 teaspoon yeast
Add 1/4 teaspoon (baking soda)

Put the cap on and twist it on tight.

Insert the airline tubing in your intake of your filter, hagen ladder or sweetwater stone AS10

Diffuser
For the sweetwater stone: get the sweetwater AS10
For the Hagen Ladder

Bottle
2L soda bottles are not balanced and will knock over b/c they are not flat bottomed. Juice bottles’ caps have never leaked from the threads in my experience. (if they do drink more juice and get yourself another bottle).

If you are really worried about the bottle knocking over, purchase a small bucket and place it in there, so there’s a barrier surrounding it.

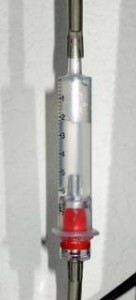

Check Valve Prevention System + Yeast Strainer
In order to keep the Yeast Muck from being released into your tank, A bubble counter is used to catch the muck. This DIY bubble counter also provides a check valve system to prevent water from back siphoning out of the aquarium.

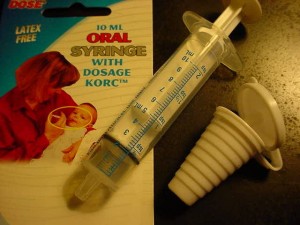

Go to Rite Aid or Longs Drugs and pick yourself up a syringe and find a check valve at your fish store.

Take the plunger off, add some glue to the check valve, insert it where the plunger used to be. Fill the syringe halfway with water. The tubing will fit on the end of the check valve, and at the end of the syringe nozzle. Insert this between the diffuser method and your reaction bottle. Congratulations, you’ve made yourself a bubble counter and a check valve system for your DIY CO2.

Some plastic check valves occasionally don’t work, always check your valve when replacing the DIY CO2 mixture. CO2 will degrade plastic valves over time, so always check.

For Larger Tanks
For larger tanks, and those that need to lower the ph more, and need more CO2. Using multiple diffusers placed at each side of the tank (left, right, middle, etc) will increase CO2 dissolution. When using the hagen ladder, you can add a T-valve to connect multiple bottles and the ladder, thereby producing more on the ladder. Placing the diffusers under a current will blow the CO2 around and further increase CO2 dissolution and contact time with the water.

Is it working?
You should see bubbles coming out within 4-24 hours. To see if your CO2 is being properly dissolved based on whichever diffusing method you chose, test your Ph before adding CO2, and after adding. You will see a drop. Refer to a PH and KH chart to see what your levels are at in ppm.

This reaction will last at least 2 weeks to 4 weeks. The more yeast added the faster the reaction but shorter duration.

Coral

Craiglist some coral for $50 after water test show good result
Calcium 480
dKH 12
nitrate 10
Green hairy mushroom, frogspawn, pom pom xenia, purple paly

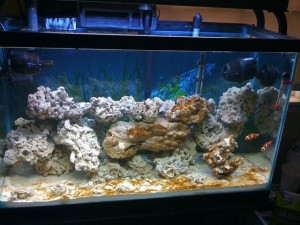

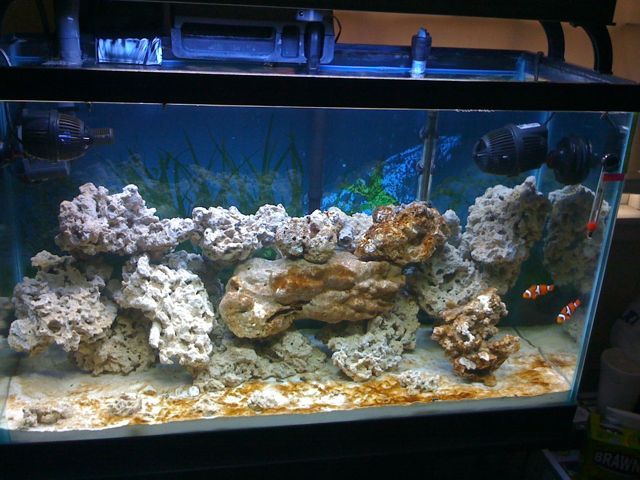

Diatom bloom

i have remove 2/3 CUC off my tank
currently have 10 Cerith, 3 Nassarius, 3 Nerite snails
i do have lit diatom bloom just around the live rock and part of sand around live rock
now my live rock have white powder stuff rusty stuff all over
i have seen copepods by the glass and heater before they are gone now after adding fish and snails
the PH buffer LFS give is maintain 8.3PH and raise alkalinity(they didnt tell me that)
i currently have API ammonia and Nitrate test kit
I just order reef test kit, i’ll get Calcium and alkalinity result in a few days
I add Koralia 2 in other side of the tank now
K2 output much flow then K1

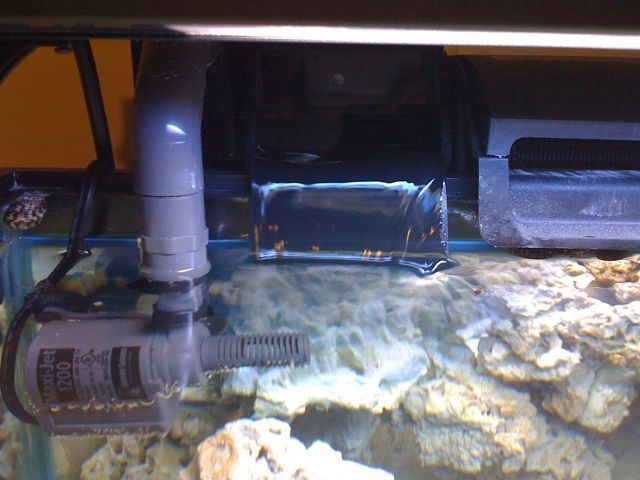

Current have K1, K2 and mexijet1200 for skimmer
is it too much flow for 29 gallons tank?
